LEGO Great Ball Contraption

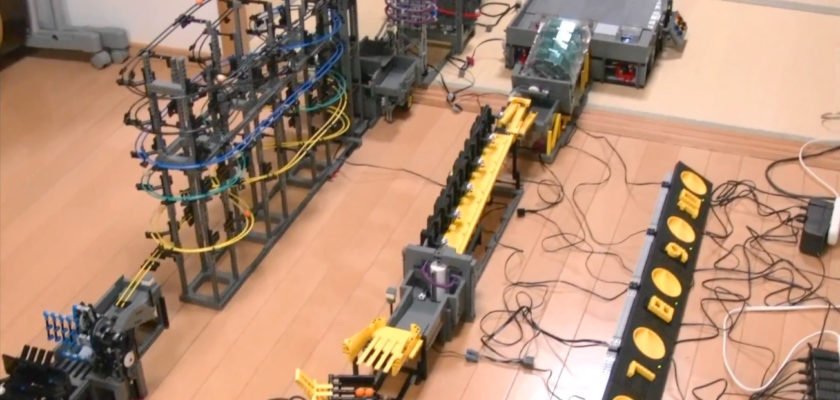

Great Ball Contraption () in my house.
my own 17 modules

tracking the and balls.

running at 1.0 balls/sec
500 balls
size : 1.5m×6.5m
: 31m
construction time : 600 hours



1. ball factory (inspired by superbird28)
2. zigzag stair
3. zigzag lift
4. pneumatic (sometimes spilling balls)
5. cup
6. screw T1
7. basket shooter
8. mechanical train (lack of reliability)
9. screw T2
10. screw T3
11. spiral lift T2
12. & coaster (coaster inspired by Hidaka’s ball rolling)
13. fork
14. spiral lift T1 & step
15. catch & release
16. belt conveyor & pinball
17. 5-axis robot S750
